NuMicro ISP Programming Tool for R200(Not for R80/R150)

You can upgrade your R200 firmware now!

V0004 - IMPROVED FEATURE

The time function has been canceled in this version of firmware,You do not need to reset the time everytime while you change the batteries.

NOTICE

1.You have to hold the "-" button (substract key) all the time during the upgrading
2.take out the batteries before the upgrading

PREPARE

  1. Factory Micro USB cable (with data transfer function).

  2. OS System requirement:Windows XP/7/8/10. (FYI: There is no driver to match Apple Mac OS from the PCB chip vendor.)


DOWNLOAD

ISP Tool (zip)

Firmware V0004 (zip)


Guideline for upgrading the R200

1. Open the ISP Tool folder with the programming tool,open the file.


2. Hold the "–" button(substract key, NOT the fire button),connect the R200 with the computer (you have to hold and press the "–" button during the upgrading).


3. Click the Connect icon till the "disconnect" icon comes with light and the Connect word turns green.

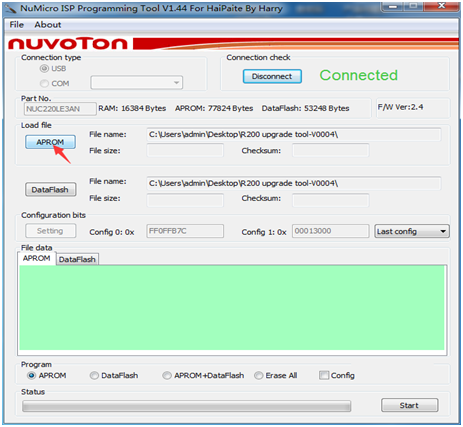

4. Click APROM icon.


5. Find the hex file in the attachement and open it.


6. Please mind that the Congig data in the top arrow should be 00013000,If not 00013000, please click Config icon in the arrow, after the Setting icon will blight, and than click the Setting icon.

7. Click the Date Flash Enable icon in the arrow and than adjust the Size to 52.0KB until the Congig data become 00013000. Than click the "OK" icon.


8. Mark APROM file icon in the arrow,and unmark the other icons,then click "Start".


Please mention that you will get a PASS once you have successfully upgraded your R200 mod.
